Special work equipment

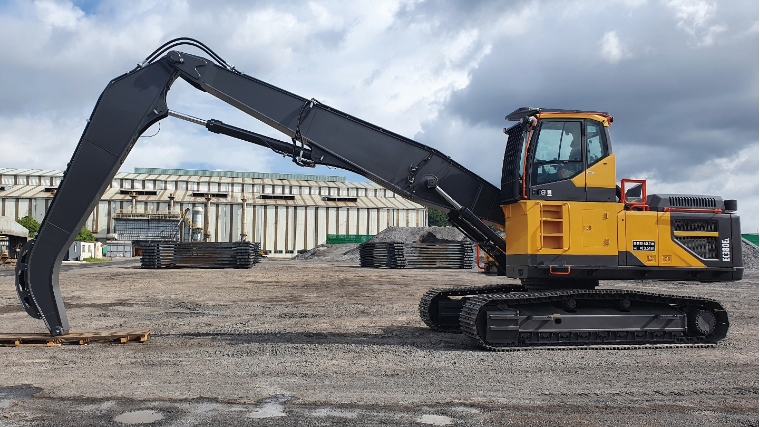

Material Handler
Long boom and goose-neck arm are installed on standard excavator to handle metal wastes and scraps, so handler, scrap loader, etc. can be attached at the end of the arm.

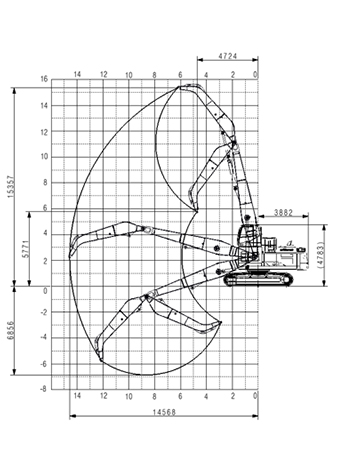

Working Range
| 38ton | 48ton | |
|---|---|---|
| Max Reach | 13.5m | 17m |
| Max Working Height | 14.6m | Requires checking |
| Max. Working Depth | 6.5m | Requires checking |
| No | 구분 | 단위 | 38Tons MH | 48Tons MH |
|---|---|---|---|---|
| Boom length | mm | 8.5 | 9.0 | |
| Arm length | mm | 5.3 | 6.0 | |

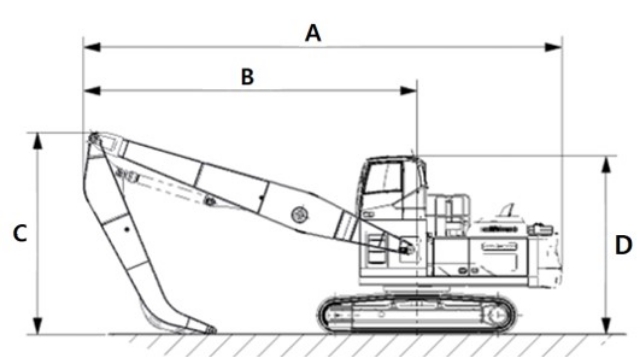

| A | Overall length | mm | 12002 | 12821 |
| B | Overall boom length @ swing center | mm | 8402 | 8939 |
| C | Overall boom height @ Max Arm in | mm | 4675 | 5424 |
| D | Overall height of Cab | mm | 4422 | 4783 |
